MOUNTZ ECD Controllers__For EC-Series (40000 models)Electric Screwdriver）

The ECD controller is for the EC-Series smart electric screwdrivers. The torque control system expedites all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies. A single Mountz DC control automation system replaces up to 15 power tools.

• Operates with Electric Screwdriver Models: EC-Series (40000 models)

• Preset selection capability: Front panel or 25P I/O

• Angle Control: 0.1 - 10 turns

• 15 Preset Parameters: Torque, Speed, Soft Start & Angle

• Auto-detection of a connected electric screwdriver when the controller is powered on

• Error display: Error code display (3 groups)

• Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time

• PC based program for parameter settings, monitoring, and real-time output

• Screw counting

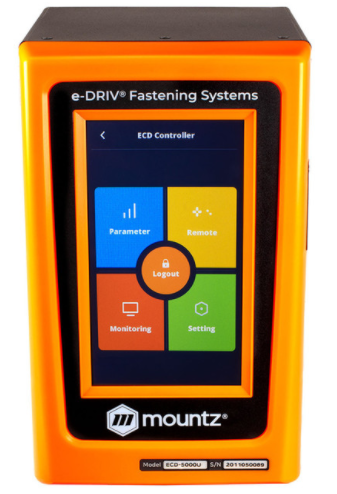

• Front panel 7" Color LCD with touch screen

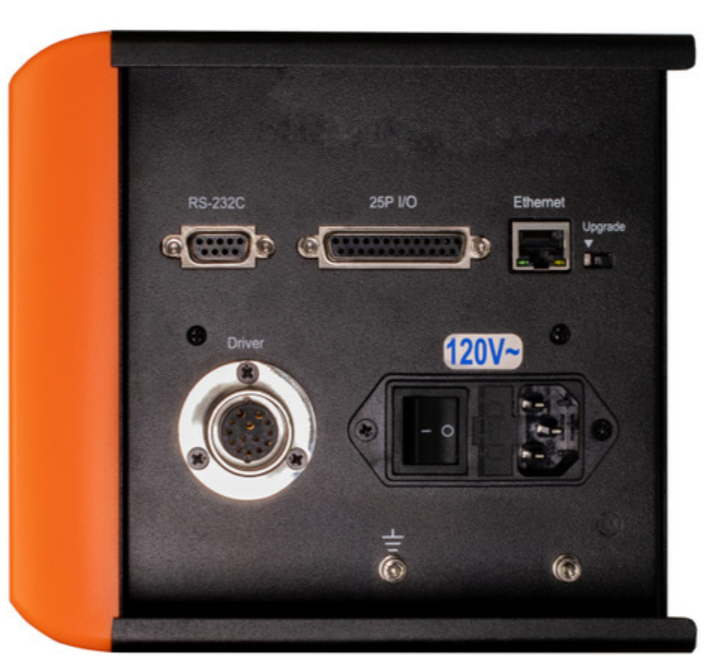

• 8 Input & 8 Output flexible I/O (25P D-Sub)

• Communication 1 x RS232C, 1 x Ethernet

• Protocol: Modbus, Open Protocol

• 4.0 MEMS system ready

• SD Card data memory slot (memory card included)

• Mounting bracket included

******Operates with Electric Screwdriver Models: EC-Series (40000 models)
